定制化您的需求

SLG-12575

SMD電感器SMD Inductor
型號Type:SLG-12575
概要Outline
◆帶磁屏蔽類型。
◆具有高效率及高飽和電流特性,應用場合廣泛。
◆除了此處顯示的標準版本參數外,也可依據您的要求設計定制。


特征Features
◆Reel包裝,可自動貼裝。

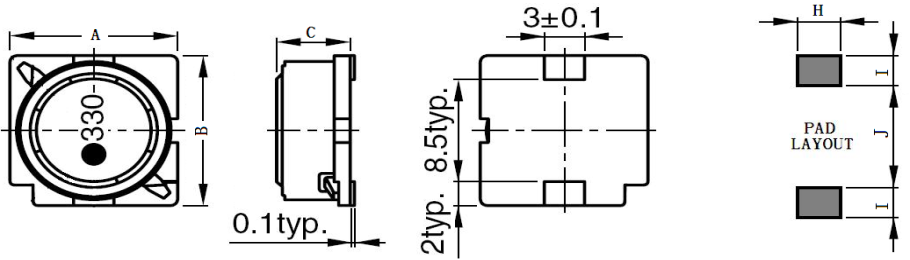

尺寸Dimension(mm)

外形尺寸Dimension(mm)

P/N

A

B

C

H(Typ.)

I(Typ.)

J(Typ.)

SLG-12575

12.5±0.3

12.5±0.3

7.85MAX

3.2

2.5

8.6


產品規格Specifications

PART NO

Inductance(μH)

DC Resistance(mΩ)Max

Rated Current(A) Max

SLG-12575-1R2

1.2±30%

9.1

8.2

SLG-12575-2R7

2.7±30%

12.4

7.0

SLG-12575-3R9

3.9±30%

13.7

6.7

SLG-12575-5R6

5.6±30%

15.2

6.3

SLG-12575-6R8

6.8±30%

17.2

5.9

SLG-12575-100

10±20%

20.4

5.4

SLG-12575-150

15±20%

24.1

5.0

SLG-12575-220

22±20%

34.3

4.0

SLG-12575-330

33±20%

51.5

3.4

SLG-12575-470

47±20%

68.8

3.0

SLG-12575-680

68±20%

101.3

2.4

SLG-12575-101

100±20%

102.6

1.9

SLG-12575-151

150±20%

227.6

1.6

SLG-12575-221

221±20%

335.5

1.3
